Thermal expansion in piping is defined as the dimensional change a pipe undergoes when its temperature rises or falls, causing it to lengthen, shorten, or deflect in ways that generate stress throughout the system. Every piping system experiences this phenomenon, from chilled water lines in commercial HVAC to high-temperature steam headers in industrial plants. If that movement goes unaccounted for, the result is cracked welds, failed nozzles, and leaking joints. ASME B31.1 and ASME B31.3 both treat thermal movement as a primary design load, not an afterthought, and any engineer or contractor working on piping systems in 2026 needs to understand why.
What is thermal expansion in piping and why does it happen?
Thermal expansion in piping originates at the atomic level. When a pipe heats up, its atoms vibrate with greater energy and occupy a larger average volume. This is not symmetric vibration. The potential energy well that governs atomic bonding is asymmetric, meaning atoms push farther apart when they gain energy than they pull together. The net result is that the entire atomic lattice shifts outward, and that microscopic shift accumulates across every meter of pipe length into a measurable dimensional change.
This behavior applies to all metals used in piping. Carbon steel, stainless steel, copper, and alloy piping all expand when heated. The rate at which they expand differs by material, which is why material selection directly affects how much flexibility a system needs. A steel pipe that runs 100 meters through a mechanical room does not stay 100 meters long when steam flows through it. It grows, and that growth must go somewhere.
The industry term for this behavior is linear thermal expansion, and it is governed by a straightforward physical relationship between temperature change, pipe length, and a material constant called the coefficient of thermal expansion. Understanding that relationship is the foundation of every piping flexibility analysis.
Pro Tip: Thermal movement is three-dimensional. A long straight run expands axially, but bends and offsets also deflect laterally. Account for all three axes when laying out supports and anchors.
How is pipe thermal expansion calculated?
The fundamental formula for linear thermal expansion is:
ΔL = L · α · ΔT
Where ΔL is the change in pipe length, L is the original pipe length, α is the coefficient of thermal expansion for the pipe material, and ΔT is the temperature difference between installation and operating conditions. Each variable has a direct, proportional effect on the result. Double the pipe length and you double the expansion. Double the temperature rise and you double the expansion.
Material coefficients and what they mean in practice

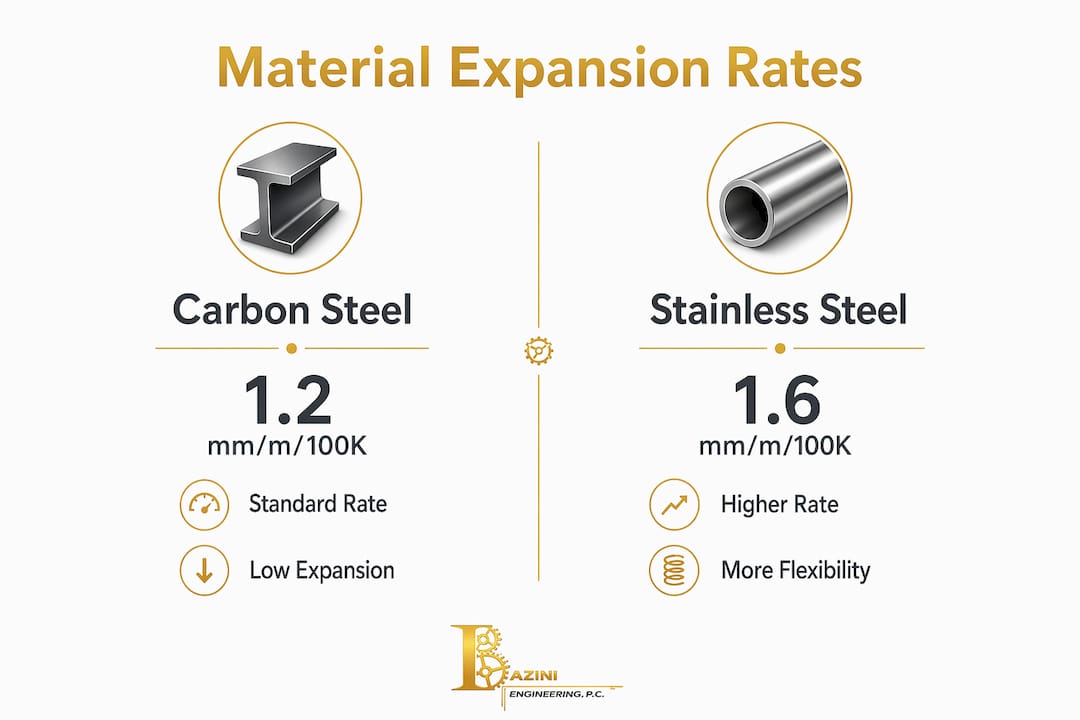

Different metals expand at different rates, and that difference matters significantly in system design. Carbon steel has a coefficient of approximately 12 × 10⁻⁶ per °C. Stainless steel runs higher, at roughly 16–17 × 10⁻⁶ per °C. That gap is not trivial. Stainless steel expands roughly 30–40% more than carbon steel for the same temperature change. A system designed for carbon steel that gets substituted with stainless steel mid-project will have a meaningfully different expansion profile, and the flexibility design must be revisited.
A practical reference point: a standard steel pipe expands about 1.2 mm per meter per 100 K temperature increase. A 100-meter run of steel pipe operating at 100°C above its installation temperature will grow 120 mm. That is nearly 5 inches of movement that the system must absorb without overstressing supports, equipment connections, or the pipe itself.
What wall thickness does and does not affect
Wall thickness does not change the total length expansion. A schedule 40 and a schedule 80 pipe of the same material and length will expand by the same amount for the same temperature change. What wall thickness does affect is stiffness. Thicker-walled pipes exert higher reaction forces at anchors and equipment nozzles because they resist bending more. That means expansion loop sizing and support selection must account for pipe schedule, not just length and temperature.
Pro Tip: Always calculate ΔT using the coldest possible installation temperature and the highest expected operating temperature. Using average conditions underestimates expansion and leads to under-designed flexibility.
| Material | Coefficient of thermal expansion (approx.) | Relative expansion vs. carbon steel |
|---|---|---|
| Carbon steel | 12 × 10⁻⁶ /°C | Baseline |
| Stainless steel | 16–17 × 10⁻⁶ /°C | 30–40% more |
| Copper | 17 × 10⁻⁶ /°C | ~40% more |
| Alloy steel (Cr-Mo) | 11–13 × 10⁻⁶ /°C | Similar to carbon steel |
What engineering methods control thermal movement in piping?
Controlling thermal movement in piping systems comes down to two goals: give the pipe somewhere to go, and make sure it gets there without overstressing anything. ASME B31.1 and B31.3 both set displacement stress range limits to protect against fatigue, not to prevent all movement. The codes recognize that thermal expansion stresses are self-limiting but cause progressive fatigue through thermal cycling. The design task is managing that cycling, not eliminating it.
Expansion loops, bends, and offsets
The most common method for accommodating thermal movement is adding intentional flexibility to the pipe route. This means designing the layout with bends rather than straight runs wherever possible.
- U-bends provide the greatest flexibility. 90-degree bends absorb expansion on both legs elastically, making U-bends the preferred choice for high-temperature systems.
- L-bends work well at direction changes and absorb expansion from one leg into the perpendicular leg.
- Z-bends offer flexibility in two planes and suit systems with complex routing.
- Expansion loops are dedicated U-shaped sections added specifically to absorb axial growth in long straight runs.
The key principle is that flexibility comes from the pipe's ability to bend, not from the pipe material stretching. Longer legs on a bend absorb more movement with less stress.
Pipe supports: the difference between guiding and restraining
Support selection is where many piping designs fail. Rigid supports convert thermal expansion forces into anchor failures and equipment damage. The correct approach is to use supports that guide the pipe while allowing controlled movement.
- Sliding shoes allow axial and lateral movement while keeping the pipe elevated off the structure.
- Variable spring hangers accommodate vertical movement in systems with significant thermal rise.
- Guides control lateral movement without blocking axial travel.
- Anchors fix the pipe at defined points to direct expansion toward the flexible sections.
The relationship between anchors and guides defines the expansion path. Anchors split the system into segments, and each segment's expansion routes toward the nearest flexible element. Placing an anchor incorrectly can force expansion into a rigid connection, which is exactly the failure mode the design is trying to prevent.
Properly designed expansion loops reduce equipment nozzle loads and prevent stress accumulation at pumps, vessels, and heat exchangers. That protection is the direct payoff of getting the support layout right.
What are the best practices for thermal expansion design in 2026?
Effective thermal expansion management starts at the layout stage, not during the support selection phase. By the time a contractor is placing hangers, the most important decisions have already been made. Here is the sequence that produces reliable results:
- Establish anchor points early. Define fixed points in the system before routing pipe. Anchors determine where expansion goes. Placing them after the route is set often forces compromises.
- Route for flexibility by default. Avoid long straight runs between anchors. Use natural direction changes in the building layout to create L-bends and Z-bends before adding dedicated expansion loops.
- Select the right compensation method for the operating temperature. Low-temperature systems (under 60°C) often manage with natural flexibility. High-temperature systems (above 150°C) typically require engineered expansion loops or bellows expansion joints.
- Use cold installation with pre-stressing where appropriate. Thermal pre-stressing reduces maximum axial stress by heating pipes to half the design temperature before backfilling or final support connection. This shifts the stress distribution and extends fatigue life.
- Verify with pipe stress analysis software. Manual calculations confirm expansion magnitude, but software analysis confirms stress distribution, support loads, and nozzle forces across the full system. This step is not optional for systems governed by ASME B31.1 or B31.3.
Designing flexibility into the system early reduces costly retrofits and avoids field modifications after commissioning. The cost of adding an expansion loop during design is a fraction of the cost of repairing a cracked weld or replacing a failed pump nozzle after startup.
Pro Tip: When reviewing a piping isometric, look for any straight run longer than 30 meters between anchors. That run almost certainly needs an expansion loop or a deliberate direction change to stay within code stress limits.
Key Takeaways
Thermal expansion in piping is the primary design driver in many systems, and managing it correctly requires combining accurate calculation, material-specific knowledge, and deliberate layout decisions from the earliest project phase.
| Point | Details |
|---|---|
| Core formula | ΔL = L · α · ΔT quantifies pipe growth from original length, material coefficient, and temperature change. |
| Material matters | Stainless steel expands 30–40% more than carbon steel, requiring more flexibility in the design. |
| Supports must guide, not restrain | Rigid supports cause anchor failures; sliding shoes and spring hangers allow controlled thermal movement. |
| U-bends absorb the most movement | 90-degree U-bends elastically absorb expansion on both legs and are the preferred flexibility element. |
| Early design prevents costly failures | Integrating anchor points and expansion loops at the layout stage avoids expensive field retrofits after startup. |
Thermal expansion is the design load most engineers underestimate
I have reviewed piping designs where the pressure calculations were meticulous and the thermal analysis was a single line in the notes. That imbalance is a real problem. Thermal expansion is often a greater design driver than pressure in power piping systems, because pressure keeps the pipe cylindrical while temperature change causes movement that concentrates stress at welds and nozzles. Pressure failures tend to be dramatic and immediate. Thermal fatigue failures are slow, progressive, and often misdiagnosed as material defects or poor welding.
The misconception I see most often is treating thermal expansion as a support problem rather than a layout problem. Engineers add more hangers, stiffen the supports, and wonder why the system keeps cracking. Stiffening a system that needs to move is the wrong direction entirely. Rigid supports create unintentional anchor points that concentrate stress exactly where you do not want it. The fix is flexibility, not rigidity.
What actually works is committing to thermal analysis in the early design phase, before the pipe route is locked in. A 10-meter expansion loop added during schematic design costs almost nothing. The same loop added during construction after a contractor has already installed supports, penetrations, and insulation is a significant change order. The physics do not change between design and construction. The cost does.
Thermal expansion stresses generate low-cycle fatigue that ASME codes address through displacement stress range limits, not zero-movement requirements. That is the right framework. Design for controlled movement, verify stress ranges against code limits, and the system will run reliably for its full service life.
