Mechanical room layout design is the deliberate organization of equipment, clearances, and service paths to meet safety codes and support long-term building operations. Engineers and architects refer to this discipline formally as mechanical equipment room planning. The best examples of mechanical room layout designs share three traits: code-compliant clearances, logical equipment sequencing, and built-in space for future upgrades. Under IRC 2024 Section M1305, a typical residential mechanical room needs at least 50 square feet for code compliance. That number is a floor, not a target.
What makes a good mechanical room layout design?
The strongest mechanical room layouts start from the equipment out, not from the room in. Inside-out design defines the room envelope based on equipment footprints plus required clearances, preventing code failures and costly redesign. Outside-in planning, where engineers fit equipment into a pre-set room, is the single most common source of operational bottlenecks in mechanical spaces.
Every compliant layout must address four core criteria:
- Working space at service panels. IRC 2024 requires a minimum 30-inch clear working space in front of electrical service panels and mechanical controls. This space must remain unobstructed at all times.
- Equipment clearances. Each piece of equipment carries manufacturer-specified side, rear, and top clearances. These stack with code minimums and must be mapped before the room boundary is drawn.
- Ventilation. Uninhabited mechanical rooms require a minimum ventilation rate of 0.02 cfm per square foot per IMC Section 406. This rate keeps relative humidity below 60%, which protects equipment and prevents mold.
- Equipment removal paths. Access doors must be sized for the largest piece of equipment in the room. A door too narrow for a boiler replacement forces demolition during a routine swap.
Pro Tip: Map every equipment removal path on your floor plan before finalizing wall locations. A furnace that fits through the door during installation may not fit after adjacent ductwork is run.
The ventilation requirement deserves extra attention. Humidity above 60% accelerates corrosion on copper piping, degrades insulation on electrical components, and voids some equipment warranties. Designing ventilation as an afterthought creates a maintenance liability from day one.
Examples of efficient mechanical room layouts
The most practical mechanical room design examples share a common logic: centralize the highest-maintenance equipment, then build outward.

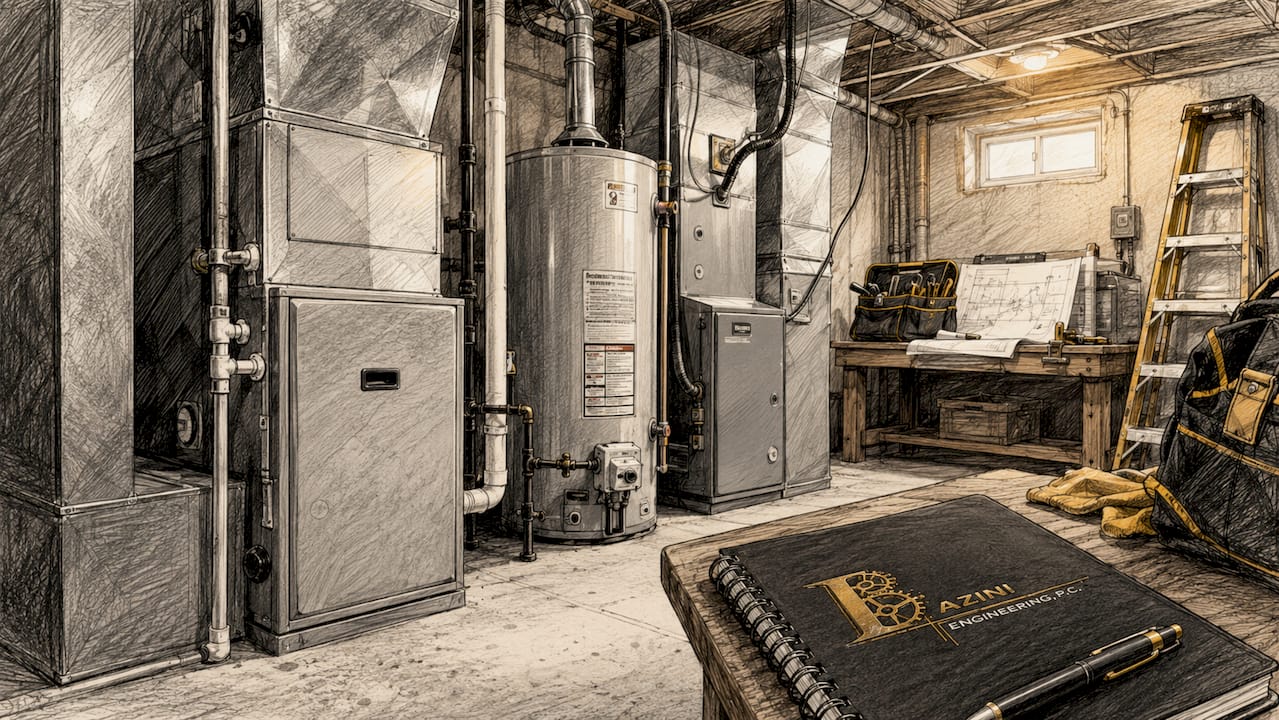

Residential layout: centralized core
A well-executed residential layout places the gas furnace, domestic water heater, and air handler in a triangular cluster at the room's center. Each unit faces a clear aisle of at least 36 inches. The furnace flue rises vertically without bending around adjacent equipment. The water heater sits within 10 feet of the main gas shutoff. The air handler aligns with the return air plenum on one side and the supply trunk on the other, keeping duct runs short and pressure drops low.
This layout works because every technician entering the room can reach any unit without moving another. That sounds obvious. In practice, mechanical rooms are often treated as afterthoughts, with equipment packed in based on what fits rather than what works. The result is maintenance costs that compound over years.
Commercial layout: zoned by system type
A mid-size commercial mechanical room benefits from zoning by system type rather than by equipment size. Group HVAC equipment on one side, plumbing and domestic water systems on the other, and electrical distribution at the entry wall. This separation does three things:
- It lets HVAC technicians work without entering the plumbing zone, reducing cross-trade interference.
- It keeps water sources away from electrical panels, which is both a code requirement and a practical safety measure.
- It creates a logical inspection sequence that building managers can follow without an engineering degree.
Pipe runs in a zoned layout are longer than in a tightly packed room, but the trade-off is worth it. Serviceability reduces maintenance costs more reliably than minimizing pipe footage.
Specialized layout: rooftop air handling unit
Rooftop mechanical rooms for air handling units follow a different logic. The unit itself is fixed by structural load points, so the layout works around it. Electrical disconnects must be within sight of the unit per NEC requirements. Drain pans need clear access for quarterly cleaning. Filter access panels require at least 36 inches of clear space on the service side.
Pro Tip: On rooftop installations, orient the filter access panel away from the prevailing wind direction. Technicians changing filters in 30 mph gusts drop components and create safety hazards.
How layout requirements differ by building type
Building type and system complexity drive layout decisions more than room size alone. Central placement of mechanical rooms minimizes pipe run length, reducing heat loss and pumping energy. Basement locations suit boilers. Rooftop locations work for air handlers that need direct outdoor air access.
| Building type | System complexity | Key layout priority | Preferred location |
|---|---|---|---|
| Single-family residential | Low | Clearance and access paths | Basement or utility closet |
| Multifamily residential | Medium | Zoning by system, noise control | Basement or ground floor |
| Small commercial | Medium | Trade separation, future capacity | Ground floor or basement |
| Large commercial or institutional | High | Redundancy, serviceability, expansion space | Dedicated floor or rooftop |
| Industrial | Very high | Equipment removal paths, ventilation | Ground floor with exterior access |
Noise control is a layout variable that architects often underweight. Mechanical rooms should avoid adjacency to noise-sensitive areas like conference rooms, patient rooms, or classrooms. Where proximity is unavoidable, acoustic insulation and vibration isolation mounts are required, not optional. A chiller placed against a shared wall with a boardroom is a design error that no amount of insulation fully corrects.
Situational tips for adapting layouts to real project constraints
No two mechanical rooms are identical. Site constraints, building age, and operational requirements all push layouts away from the textbook ideal. These principles help you adapt without sacrificing compliance or serviceability.
- Plan for future equipment. Allocate at least 20% additional space beyond the current equipment footprint. Buildings that skip this step face disruptive and expensive retrofits when technology upgrades arrive. A heat pump water heater replacing a gas unit may require twice the floor area and new electrical capacity.
- Locate relative to exterior walls. Rooms on exterior walls simplify combustion air intake, exhaust routing, and refrigerant line sets. Interior rooms require longer penetrations through occupied floors, which adds cost and coordination complexity.
- Coordinate trades early. Mechanical, electrical, and plumbing systems compete for the same ceiling and wall space. A mechanical room designed without electrical input will have conduit runs that block duct access. BIM coordination before construction documents are finalized catches these conflicts at zero cost.
- Size access doors for the largest equipment. Access doors should accommodate removal of the largest piece of equipment, with paved access nearby for maintenance vehicles. This is a Fairfax County BDCD design standard and a practical requirement in any jurisdiction.
- Work around structural constraints in older buildings. Load-bearing walls and existing mechanical chases limit where new equipment can go. In these cases, prioritize clearance for the highest-maintenance equipment first, then fit lower-maintenance units into remaining space.
Pro Tip: In renovation projects, photograph every existing penetration, pipe sleeve, and conduit path before demolition. Structural surprises discovered during framing are far cheaper to resolve than those found during mechanical rough-in.
Key takeaways
Mechanical room layout design succeeds when it starts from equipment clearances outward, reserves space for future upgrades, and treats serviceability as a primary design constraint rather than a secondary concern.
| Point | Details |
|---|---|
| Start from equipment out | Define room boundaries from equipment footprints plus clearances, not from a preset room size. |
| Meet IMC 406 ventilation minimums | Provide at least 0.02 cfm per square foot to keep humidity below 60% and protect equipment. |
| Reserve 20% expansion space | Extra floor area prevents costly retrofits when equipment upgrades require larger or additional units. |
| Zone by system type in commercial buildings | Separating HVAC, plumbing, and electrical zones reduces cross-trade interference and simplifies inspections. |
| Size doors for equipment removal | Access openings must accommodate the largest unit in the room, not just routine maintenance access. |
