Cut Commissioning Hours: Engineer's BACnet vs Modbus for Mixed Systems

Use BACnet for multi-vendor supervisory BMS work and Modbus for meters, VFDs, and OEM equipment that ships without native BACnet support. The default architecture on most projects is BACnet/IP or BACnet/SC at the supervisor level, with Modbus RTU or TCP at the field level bridged through gateways. Wherever Modbus devices are exposed on the network, segmentation and firewall rules matter as much as the protocol choice itself.

TL;DR:

• BACnet supports native functionalities like scheduled operations and alarms, which reduce integration effort and improve operational reliability.
• Modbus remains prevalent for meters, VFDs, and OEM equipment due to its simplicity and widespread industry adoption, despite requiring manual register mapping.
• The choice between protocols influences network design, device discovery, and scalability, with BACnet favored for large, multi-vendor projects and Modbus for cost-sensitive, device-specific deployments.
• Gateways are essential for mixing protocols, and they must be carefully configured with documented register maps and polling cadence to ensure system reliability and security.
• Security measures for Modbus rely on network segmentation, firewall rules, and VPNs, as it lacks native security features, unlike BACnet/SC, which offers TLS encryption and certificate-based authentication.

Table of Contents

• What Is BACnet and Why Does It Fit Supervisory BMS Work?
• What Is Modbus and Why Do OEMs Default to It?
• BACnet vs Modbus: A Technical Comparison for Integrators
• Where Each Protocol Actually Fits on a Project
• How Gateways and Mapping Actually Work in Mixed Systems
• Security Gaps and How to Close Them
• What Deployment Actually Costs in Engineering Hours
• Bazini Engineering's Commissioning Checklist for Mixed Protocol Systems
• The Real Tradeoff Nobody States Plainly
• Get Your BACnet/Modbus Integration Specified Right the First Time
• Sources
• FAQ

What Is BACnet and Why Does It Fit Supervisory BMS Work?

BACnet was developed under ASHRAE and standardized as ANSI/ASHRAE Standard 135, and that lineage matters more than it sounds. It means the protocol carries an object-oriented model with native services for schedules, alarms, and trend logs built into the specification, not bolted on by whoever wrote the integration. Devices that pass conformance testing earn a BACnet Testing Laboratory (BTL) listing, which gives specifiers a real basis for procurement language instead of taking a vendor's word for interoperability.

BACnet supports multiple transports, and the choice affects wiring and network design from day one:

• BACnet/IP runs on UDP port 47808, the standard for supervisory-level Ethernet networks.
• MS/TP runs over RS-485 serial, common for field controllers on VAV boxes and unit controllers.
• BACnet/SC (Secure Connect) layers TLS and certificate-based authentication on top, for sites where IT security policy won't tolerate broadcast traffic.

Device discovery happens through Who-Is and I-Am service requests, so a supervisor can find controllers on the network without a manually built device list. Data lives in objects with properties like Present_Value and Object_Name, and controllers can push updates through Change-of-Value (COV) subscriptions rather than waiting to be asked. That object model reduces integration effort because units, alarm classes, and schedule behavior are protocol-native, not left to whatever spreadsheet the last integrator built.

What Is Modbus and Why Do OEMs Default to It?

Modicon introduced Modbus in 1979, and it remains the default protocol on meters, VFDs, and packaged OEM equipment more than four decades later. The Modbus Organization maintains the specification today, but the protocol's simplicity, not any marketing effort, is what keeps it everywhere.

Three variants show up on real jobs:

• Modbus RTU runs over RS-485 serial, the most common variant on chillers, boilers, and pump skids.
• Modbus ASCII is an older, slower serial variant, rare on new equipment but still found on legacy gear.
• Modbus TCP runs on port 502 over Ethernet, removing serial distance and wiring limits while keeping the same register logic.

Modbus addresses data as flat registers and coils. There's no built-in concept of "this is a temperature" or "this is an alarm state." Every integrator has to obtain the vendor's register map and translate raw addresses into meaningful points by hand. Polling is strictly request and response: the master asks, the slave answers, and nothing gets pushed proactively. Serial RTU networks also cap out at practical device counts per RS-485 trunk and typically run at baud rates between 9600 and 19200, which becomes a real constraint on large meter farms. Modbus TCP relieves the serial ceiling but keeps the register-map dependency and the polling model.

BACnet vs Modbus: A Technical Comparison for Integrators

The two protocols solve different problems, and the differences show up in six places that actually change your engineering hours.

Data semantics drive most of the labor difference on a project. A BACnet AHU controller announces its supply air temperature as a clearly named, typed object. A Modbus VFD hands you register 40012 and a PDF that says it's frequency output scaled by 0.1. Multiply that by 200 points on a mechanical room retrofit and you understand why integrators charge more for register mapping than for BACnet object binding.

Discovery and configuration follow the same logic. BACnet's Who-Is/I-Am exchange lets a supervisor populate its device tree automatically on a healthy network. Modbus has no equivalent. Every register address, every scaling factor, every point name gets typed in by a human, and every typo becomes a commissioning bug.

Polling versus eventing changes what your supervisor's CPU does all day. Modbus master software has to ask every slave device for its current value on a fixed interval, whether the value changed or not. A network of 300 Modbus points polled every five seconds generates a lot of traffic for very little new information. BACnet's COV subscriptions let a device report only when its value actually crosses a threshold, cutting both network load and the latency between an event and an alarm reaching the operator.

Scalability favors BACnet/IP on large campuses simply because Ethernet and IP addressing scale further than an RS-485 trunk. MS/TP segments still carry practical device count limits, and Modbus RTU has the same ceiling, but Modbus TCP closes most of that gap by moving onto Ethernet.

Commissioning effort is where the two protocols diverge most in dollars. Forcing a full BACnet interface onto every piece of packaged equipment on a job can raise equipment costs by 15% to 25%, because not every OEM chiller or boiler package ships with a BACnet card as standard. That's the number that should anchor your specification decisions, not a blanket rule that everything must speak BACnet.

Where Each Protocol Actually Fits on a Project

Match the protocol to the layer, not to a preference, and most selection headaches disappear.

1. Default to BACnet/IP for the supervisory layer. Multi-vendor head-ends, campus-wide BMS platforms, and anywhere alarm routing and trend logging matter should run BACnet/IP, or BACnet/SC when the IT department requires encrypted, certificate-based traffic.
2. Accept Modbus at the equipment layer when BACnet isn't offered. Energy meters, VFDs, and OEM skids frequently ship Modbus-only. Fighting that on every job wastes budget better spent elsewhere.
3. Bridge with gateways on brownfield retrofits. Replacing working Modbus field devices to gain a BACnet interface rarely pencils out. A gateway costs far less than a device swap and carries a fraction of the schedule risk.
4. Reserve full replacement for cases where the math favors it. If a device is already failing, near end-of-life, or part of a larger controls overhaul, spec the BACnet-native replacement instead of adding another gateway to maintain.
5. Run a short checklist before locking the spec: does the project need multi-vendor interoperability, how fast does an alarm need to reach an operator, and does the network security policy mandate encrypted transport?

A chiller plant retrofit with three different equipment vendors is the clearest case for BACnet at the head-end. A standalone electric submeter feeding a utility billing report rarely justifies anything beyond Modbus RTU and a gateway.

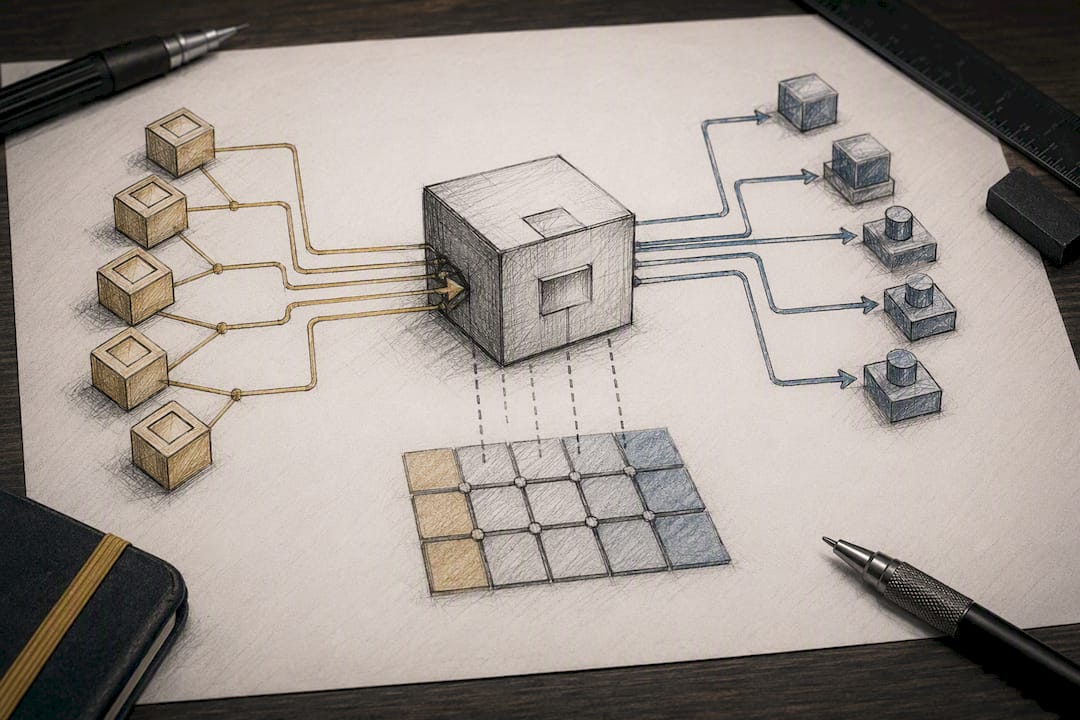

How Gateways and Mapping Actually Work in Mixed Systems

Vendor-neutral gateways are the canonical bridge between the two worlds, and they carry more engineering responsibility than most specifications acknowledge. A gateway doesn't just pass bytes through. It maps every Modbus register to a corresponding BACnet object, applies scaling factors, assigns readable point names, and converts units so the supervisor sees "Supply Air Temp, 55.2°F" instead of raw register 40007.

Polling cadence design belongs in the gateway spec, not left to installer defaults:

• Poll fast-changing points (VFD speed, discharge pressure) more frequently than slow ones (setpoints, static status bits).
• Document every register map in a versioned spreadsheet or database, not a technician's notebook.
• QA the mapping against the vendor's actual register list before commissioning, not after the trend logs come back wrong.

Field wiring deserves its own line item too: never mix MS/TP and Modbus RTU devices on the same RS-485 trunk. Both use the same physical layer but different frame formats, and combining them produces intermittent communication faults that are miserable to troubleshoot in the field.

Pro Tip: Keep a master register-to-object mapping document under revision control for every gateway on a project. When a vendor firmware update shifts a register address, you need to know exactly which BACnet objects break, not rediscover it during a service call.

Security Gaps and How to Close Them

Modbus has no native security whatsoever. Anyone with network access to a Modbus TCP port can read or write registers with no authentication at all. Base BACnet isn't much better on its own, but BACnet/SC closes that gap with TLS encryption and X.509 certificate authentication, which is why an increasing number of IT departments now require it for any BAS traffic touching the corporate network.

A Modbus Security specification with TLS wrapping does exist, but it's rarely implemented by vendors in practice, so don't spec around it as if it were standard equipment. Real protection for Modbus networks comes from the network layer instead:

• Isolate BAS traffic on dedicated VLANs, separate from general office IT.
• Firewall Modbus TCP port 502 and BACnet/IP port 47808 at every network boundary.
• Use VPN tunnels for any remote vendor access instead of exposing ports directly.
• Schedule periodic penetration testing on any exposed Modbus/TCP endpoint and audit firewall rule sets on a fixed calendar, not only after an incident.

What Deployment Actually Costs in Engineering Hours

Engineering hours tell the other half of the story.

• Mapping a Modbus register list into a working point database takes longer per device than binding BACnet objects that already carry names and units.
• BACnet's auto-discovery cuts commissioning time on multi-device networks, since the supervisor finds controllers instead of a technician typing addresses one by one.
• Semantic data models pay off over the building's life through faster fault diagnosis and easier retrofits, even when the upfront capital delta favors Modbus.
• Accept Modbus-only equipment where cost or lead time makes BACnet impractical, but push for a BACnet interface whenever a vendor offers it at a reasonable premium.

Bazini Engineering's Commissioning Checklist for Mixed Protocol Systems

Projects with mixed BACnet and Modbus systems fail commissioning for predictable reasons, and a short checklist catches most of them before startup.

• Require vendors to submit a complete register map with units and scaling for every Modbus device before installation begins.
• Test COV subscription behavior and polling intervals on the actual network, not just on a bench setup.
• Verify firewall rules block unauthorized access to exposed Modbus/TCP and BACnet/IP ports before final acceptance.
• Include gateway mapping documentation and point naming conventions in every submittal package and commissioning report.

The Real Tradeoff Nobody States Plainly

Most articles frame this as a technical shootout, but the honest framing is operational: BACnet buys you interoperability and lower long-term maintenance cost, and you pay for that with more upfront specification discipline. Modbus buys you cheap, ubiquitous hardware, and you pay for that later in mapping labor and weaker security posture. Neither protocol is going away, so plan for gateways and network segmentation from day one instead of treating them as an afterthought during commissioning. Use the checklist above during procurement, not after the equipment arrives on site.

— Joseph

Get Your BACnet/Modbus Integration Specified Right the First Time

One practical approach avoids guessing at a controls spec and hoping the gateway works on day one. Where other approaches leave register mapping, security segmentation, and conformance language to whoever's cheapest on the integration bid, in-house mechanical and controls disciplines can write that language into the design documents before bid, with direct access to senior engineers instead of an account manager relaying questions back and forth.

A typical engagement covers HVAC controls coordination, network architecture review, and commissioning oversight, with deliverables that include point lists, gateway mapping specifications, and permit-ready drawings for NYC Department of Buildings filing where required. If your next mechanical or controls project needs a specification that actually accounts for BACnet and Modbus coexistence, visit Bazini Engineering's services page to start the conversation.

Sources

• BEMS HVAC Protocols: BACnet vs Modbus vs OPC UA (Industrial Monitor Direct)

FAQ

Does BACnet Use IP, or Is It the Same as Modbus?

BACnet runs over multiple transports, including BACnet/IP on UDP port 47808 and MS/TP serial; it is a separate protocol from Modbus, which uses TCP port 502 or RS-485 serial with a flat register model.

Can You Convert BACnet to Modbus?

Yes, vendor-neutral gateways bridge the two by mapping Modbus registers to BACnet objects, though someone still has to configure scaling, point naming, and polling cadence for the translation to work reliably.

Does BACnet Use TCP/IP?

BACnet/IP runs over UDP, not TCP, using port 47808 for its native IP transport; BACnet/SC adds TLS-secured TCP connections for sites requiring encrypted traffic.

Is BACnet Better Than Modbus?

Neither protocol is universally better. BACnet fits multi-vendor supervisory systems needing interoperability and security, while Modbus advantages over BACnet show up in raw hardware cost and simplicity for single-purpose field devices like meters and VFDs.
